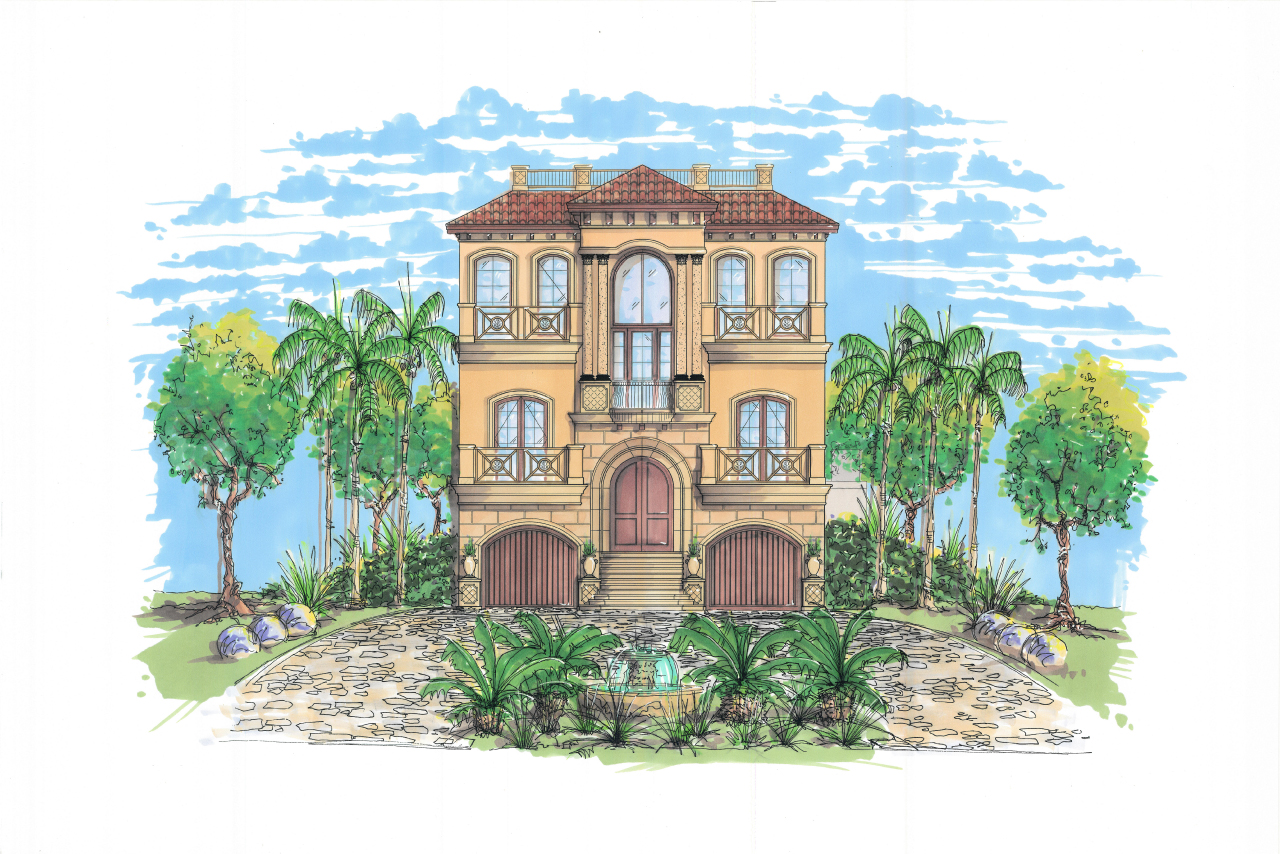

The Bayview House Plan
Back to Plans Order This House Plan

View Larger Image

Specs

Stock Number: G3-2664
Bedrooms: 3
Full Bathrooms: 3
Half Bathrooms: 1
Garage: 4
Floors: 3
Depth: 77' 8"
Width: 34' 6"
Height: 39'
Foundation Type: Slab
Exterior Wall 1st Floor: 8" CMU
Exterior Wall 2nd Floor: 2x6 wood frame
Roof Pitch: 6:12
Roof Framing: Mfg Truss
Overall Ceiling Height: 11'

Square Footage

Total Living Area: 2,664 sq. ft.
Main Floor: 1,789 sq. ft.
Second Floor: 705 sq. ft.
Lower Floor: 170 sq. ft.
Entry: 89 sq. ft.
Balcony: 817 sq. ft.
Lanai: 1,187 sq. ft.
Garage: 1,174 sq. ft.
Total Under Roof: 5,931 sq. ft.

Features

Walk-in Pantry
Open floor plan
Loft/Balcony
Bonus Room
Handicapped Accessible
Elevator
Tandem Garage
Over-Sized Garage
Outdoor Kitchen
Walk-in Closet

Pricing

1 PDF File: $2,500.00
CAD or Electronic files: $3,000.00
